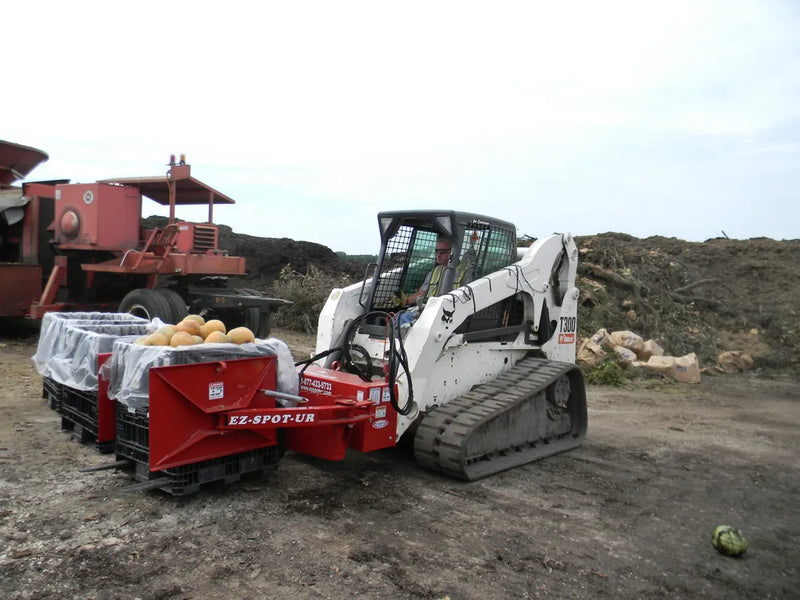

EZ Spot UR Clamping Fork Tool

• Attaches to a skid steer or any other machine that is equipped with the Universal Quick 'Tach mounting system.
• Attachment weighs 1166 pounds with the EZ Spot UR Double Cylinder Rotating Base and 48 inch forks.
• Rotates 127° to the operators left when attached to an EZ Spot UR Double Rotating Base.
• Can also be attached to an EZ Spot UR Fixed Non-Rotating Base.
• Rated Lift Capacity
  • Without Forks:  1,500 lbs.
  • With Forks:  3,130 lbs.
• Max Opening and Close:
  • Opens up to 52 inches
  • Closes down to 26 inches
• 42", 48", or 60" forks available
• Hydraulic arm has a 2" x 6" cylinder, which has a breakout force of 9,425 lb.
• Composed of Grade 50 material or higher and core welded to withstand years of wear and tear.
• Comes complete with hoses, flush faced couplers, spring hose mount, and wiring harness.
• Clamping Fork Tool can be adapted to fit excavators, wheel loaders, telehandlers and backhoes*.

*Requires specialty bolt-on mount.
