EZ Spot UR Wire Reel

EZ Spot UR Wire Reel

$ 19,990.00 - $ 19,990.00
$ 19,990.00
$ 19,990.00 - $ 19,990.00
$ 19,990.00
In stock, ready to ship

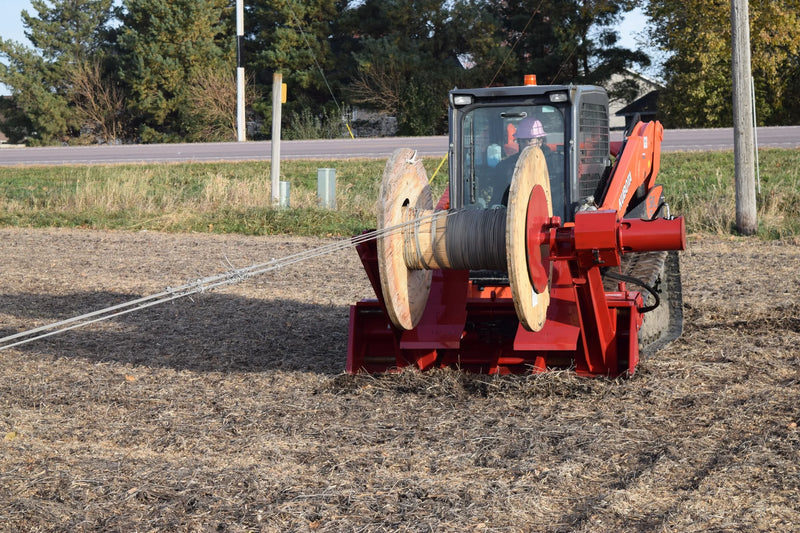

With the EZ Spot UR Wire Reel, winding up wire is easy. Very EZ!  The wire reel is designed for an operator to pick up spools ranging from 24 inches to 50 inches wide and a maximum diameter of 72 inches.  The Wire Reel contains locating plates for lining up the spool with the shaft for easy loading.  A spring loaded pin locks into one of the outer holes of the spool, providing a non-slip grip.  The two main clamping plates are rubber lined for additional grip.  The Wire Reel is capable of free-wheeling for unwinding wire off of a spool.  Loading and unloading spools is safe and easy.  Save time, money, and labor with the EZ Spot UR Wire Reel.

CONTACT US FOR THE LEAD TIME ON THIS PRODUCT.

Key Features

  • The wire reel attaches to a skid steer or any other machine that is equipped with the Universal Quick 'Tach mounting system.
  • Attachment weighs 1,945 pounds.
  • Opening is manually adjustable to handle two different ranges of widths of spools by moving a pin on the main shaft to one of two locations:
    • 1st Location
      • Spool widths 32"-50"
    • 2nd Location
      • Spool widths 24"-42"
  • Maximum spool diameter: 72"
  • Maximum loaded spool weight: 5,900 pounds
  • Free-wheeling capability
  • Contains locating plates for lining up the shaft with the center hole on a 72 inch spool.
  • Composed of Grade 50 material or higher and core welded to withstand years of wear and tear.

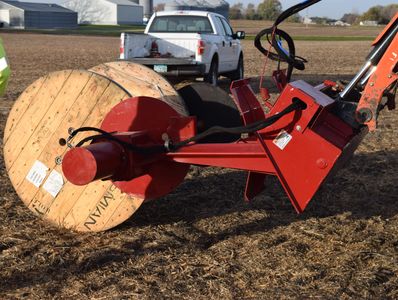

The EZ Spot UR EZ-WR01 Wire Reel attachment loading up a spool for wire.

Equipment Specifications



  • Equipped with two 2.5" x 12.5" hydraulic clamp cylinders.  Each cylinder has a breakout force of 14,726 lbs.
  • The clamping plates are rubber lined for increased grip on the spool.
  • Two main shafts are Ø2.5" 4140 that go into center hole of spool.
  • Spring-loaded pin catches outer hole in spool for a non-slip grip when winding wire.
  • Rotation is powered by a hydraulic motor and planetary gear box combination.  Produces a maximum of 46,452 in-lbs of torque and 95 rpm at 3000 psi and 40 gpm.
  • Motor has a displacement of 18.7 cubic inches per revolution.
  • Gear box has a 5.2:1 reduction ratio.
  • Comes complete with hoses, flush faced couplers, spring hose mount, and wiring harness.
  • Can be adapted to fit excavators, wheel loaders, telehandlers and backhoes*.




 *Requires specialty bolt-on mount.
