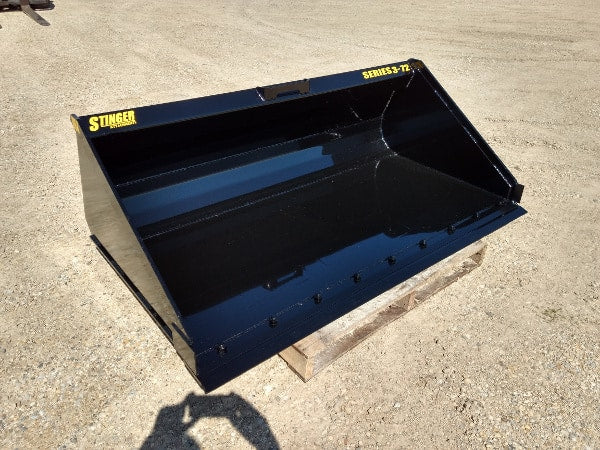

Tractor Material Bucket – Series 3 (MB3)
The bigger the bucket, the more it can do. Stinger Attachments' tractor material bucket Series 3 has more capacity than the Series 2 buckets and is designed to provide greater utility to larger tractors. The bucket can handle a large...
![""]("https://stingerattachments.com/wp-content/uploads/2024/02/Product-Brochure.png")
Features
- 3/16ths grade 50 shell.
- 40” deep bucket for increased capacity and greater visibility of the cutting edge.
- Weld on, Or Bolt on Cutting Edge Options
- ¼” sides with½” thick side braces for added strength.
- 4 – 4” wide by ½” thick wear bars for improved strength and prolonged bucket life.
- Reinforcement tube across top of bucket for greater strength, durability and ultimate visibility.
- 3/16ths rolled insert for added strength and better clean out.
- Included step for easier access.
Specs
| Size | Approx. LBS (Bolt-On) | Struck Capacity (CU.FT.) | Heap Capacity (CU.FT.) | Back Angle | # of 1/2 "X4" Wear Bars |
|---|---|---|---|---|---|
| 60" | 614 LBS | 14.2 | 17.8 | 68 DEG | 4 |
| 66" | 653 LBS | 15.6 | 19.5 | 68 DEG | 4 |
| 72" | 690 LBS | 17 | 21.3 | 68 DEG | 4 |
| 78" | 743 LBS | 18.5 | 23 | 68 DEG | 5 |
| 84" | 780 LBS | 19.9 | 23.8 | 68 DEG | 5 |
Product Specifications
| Brand | Stinger Attachments |
| SKU | MB3-UT |
| Weight | 614.0 lb |
