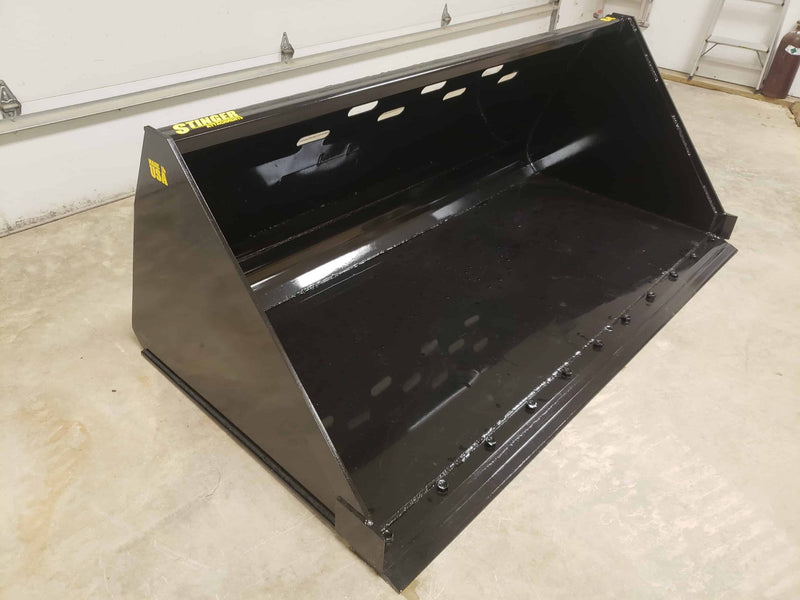

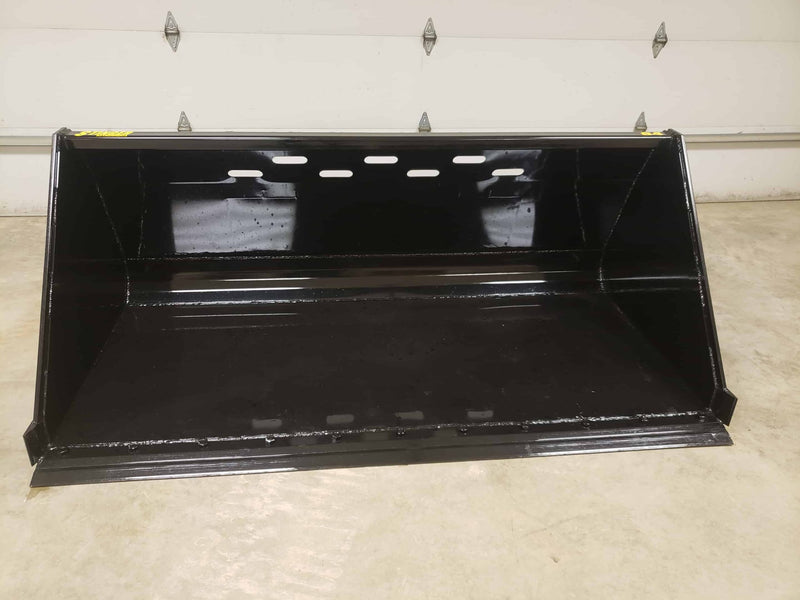

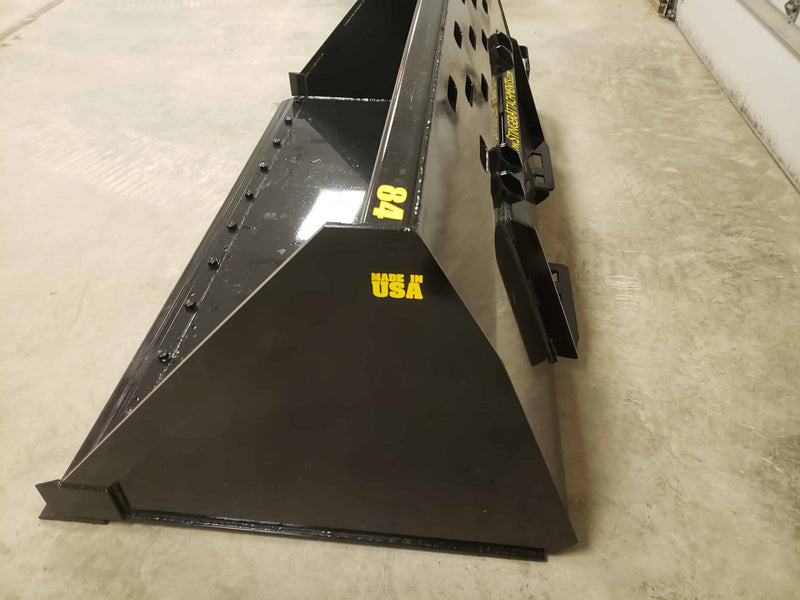

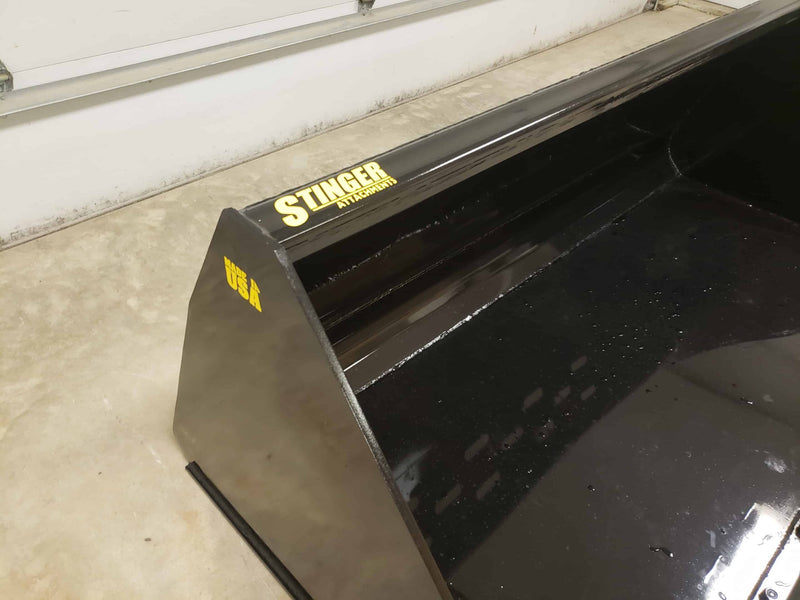

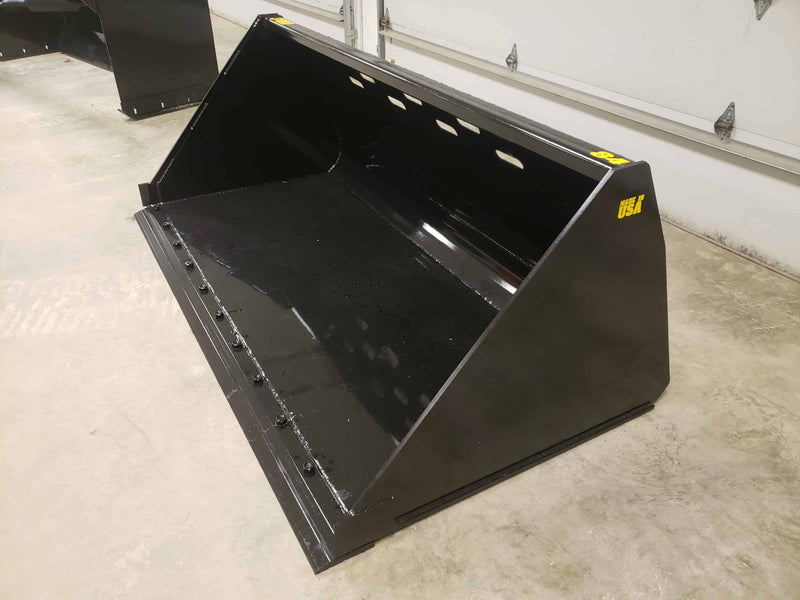

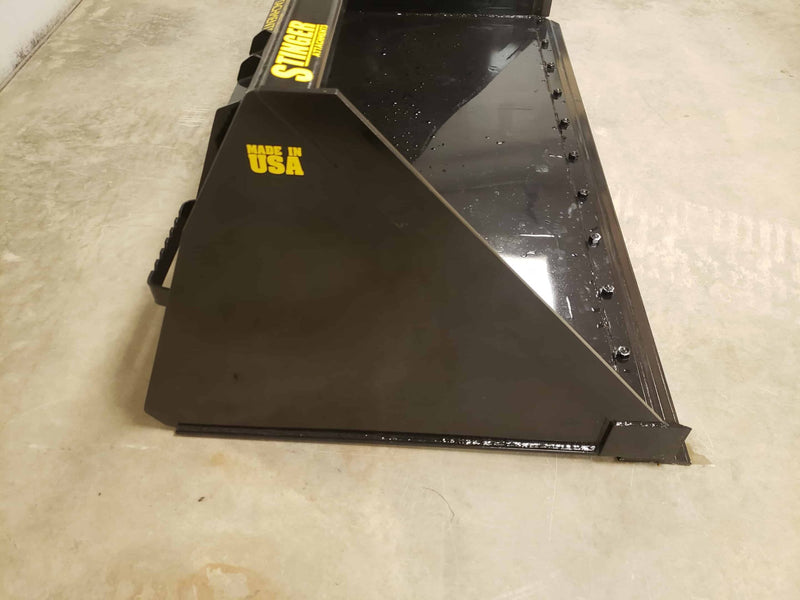

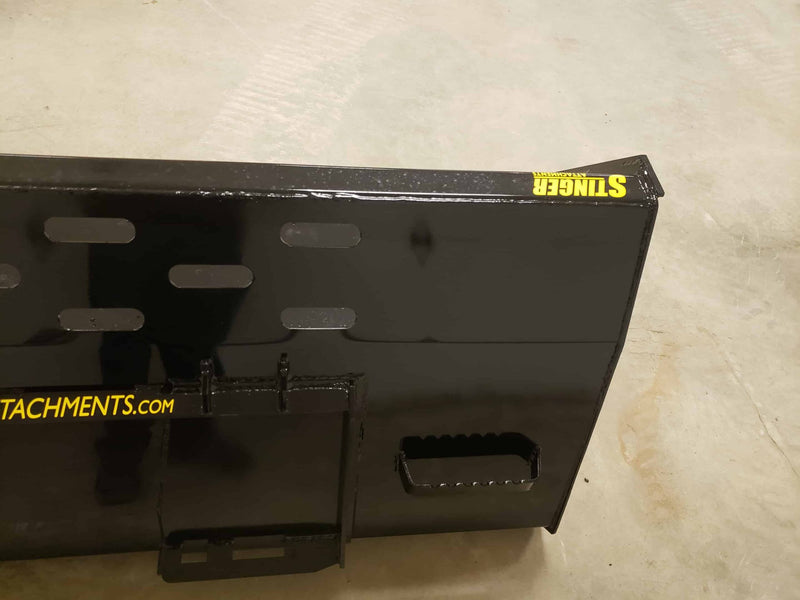

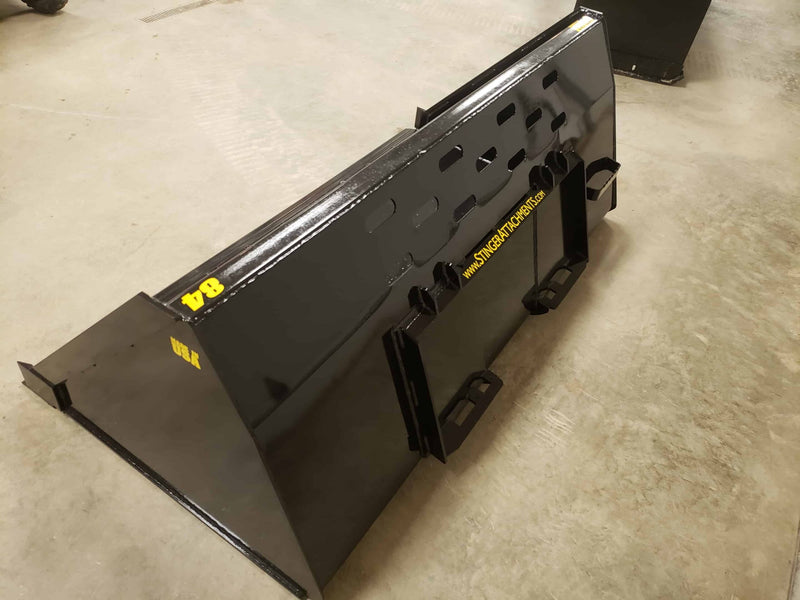

Snow Bucket (SNB)
Our high capacity snow bucket offers a high strength 3/16 gr50 shell. We add a top 4x2 rect tube, and bottom radius plate that are fully welded to add superior strength to the shell. The sides are ¼" and have an additional ½"x3" steel ...
![\"\"](\"https://stingerattachments.com/wp-content/uploads/2024/02/Product-Brochure.png\")
Features
- 3/16 Grade 50 steel shell
- Shell reinforced by a welded 4×2 rect tube and bottom radius plate
- ¼" sides with additional ½"x3" welded steel support
- ½"x4 wear bars
- Weld on or bolt on cutting-edge options

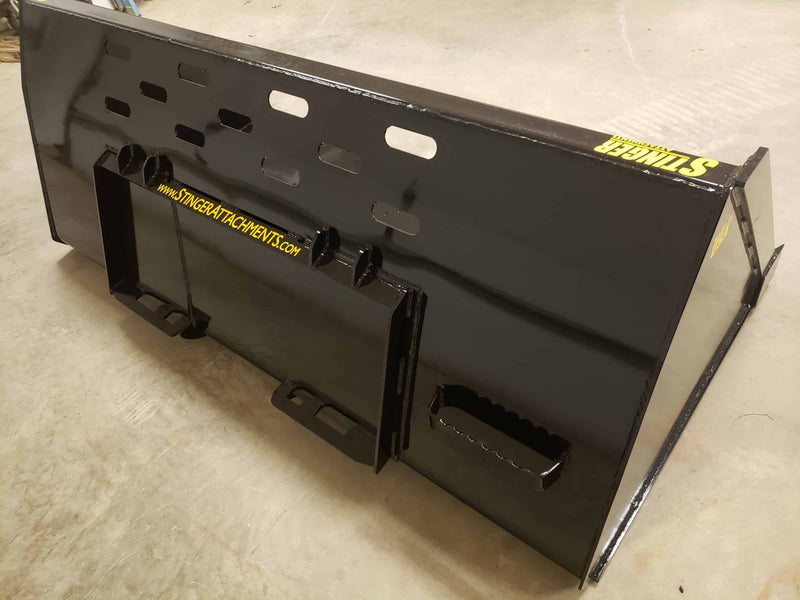

- See through design for high visibility

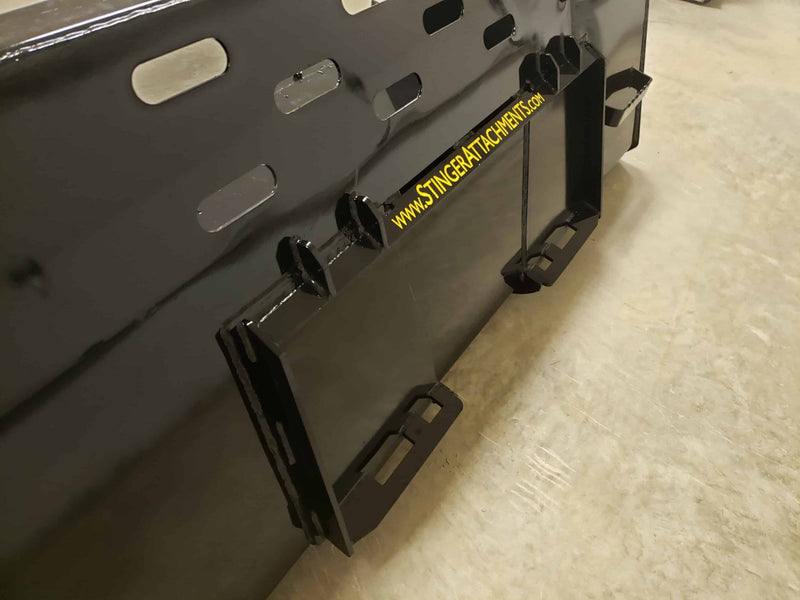

- Optional Euro Global mount
Specs
| Size | Approx. LBS (Bolt-On) | Struck Capacity (CU.FT.) | Heap Capacity (CU.FT.) | Back Angle | # of 1/2 "X4" Wear Bars |
|---|---|---|---|---|---|
| 6FT | 821 LBS | 25.8 | 32.3 | 68 DEG | 4 |
| 7FT | 910 LBS | 30 | 37.5 | 68 DEG | 4 |
| 8FT | 1000 LBS | 34.4 | 43 | 68 DEG | 4 |
| 9FT | 1108 LBS | 35.45 | 44.3 | 68 DEG | 5 |
| 10FT | 1198 LBS | 36.5 | 45.6 | 68 DEG | 5 |
Video Overview
Product Specifications
| Brand | Stinger Attachments |
| SKU | SNB |
| Weight | 821.0 lb |
