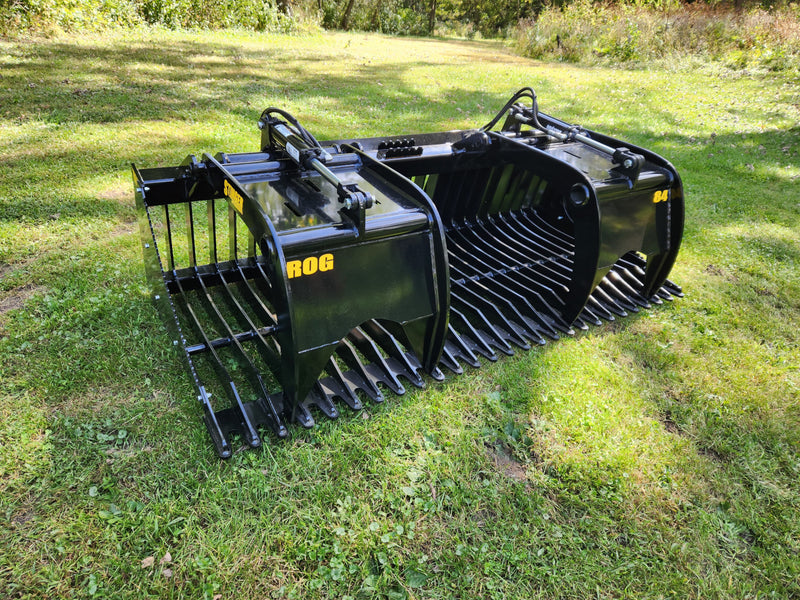

Open Sides Rock Grapple Bucket (ROG)

The skid steer rock grapple open-sided grapple is the ideal attachment for sifting rock, grabbing a brush, moving logs, debris cleanup, and much more. It has a 2-7/8” opening between the tines to grab the smaller rocks but still let the dirt fall through. It is fitted with a weld-on serrated cutting edge ½” thick. The serrated cutting edge allows for easy digging of rocks and also helps leave a very nice finish when doing the grading. It is fitted with 2 grapples that grapple independently to secure uneven loads. With a large 48” grapple opening, the bucket can hold large amounts of material to ensure productivity. Built with strong grade 50 steel all throughout ensures a high-quality product you can depend on. Grapples have large 1” greasable pins as well. This attachment comes with hydraulic hoses and standard ½” flat face couplers.



Suitable for the Universal Quick attach, John Deere 100-500 series and Global Euro. Contact us to get advise on which one to use or for any other questions.

John Deere 100-500 series has a +$100 cost.
Global Euro has a +$150 cost.

Product is built with large 4×4 upper square tubing, and heavy-duty 3/8 plate steel throughout the entire bucket to truly add life and economic viability of the product. Heavy-duty tines are spaced 3.25” apart so larger items will stay in the bucket while loose dirt or dust falls through. Two heavy-duty independent grapples powered by two Maxim 2500 psi cylinders have a massive 48″ opening and are completely removable in less than 10 minutes to make sure you can handle any job

Bucket

Structural steel materials and reinforcement on the top and bottom let this rock grapple’s bucket hold the toughest materials. The universal mounting plate fits most popular skid steer makes, including Bobcat, John Deere and Kubota. Ask us about custom mounting options or leaving the attachment clear for your own mounting plate.

• Grade 50 steel (3/8″ Tines)
• 4″x 4″x 1/4″ top tubing
• 3″x 3″x 1/4″ bottom tubing
• 1/2″ serrated cut edge
• 2-7/8″ opening between tines
• Universal skid steer mount plate
• (Call for other mounting options)

Grapples

Increase your grapple load with a wide 48-inch opening and twin-cylinder grapples that adjust separately.

• 48″ grapple opening
• Twin 2500 psi cylinders
• 1/2″ flat face couplers included
