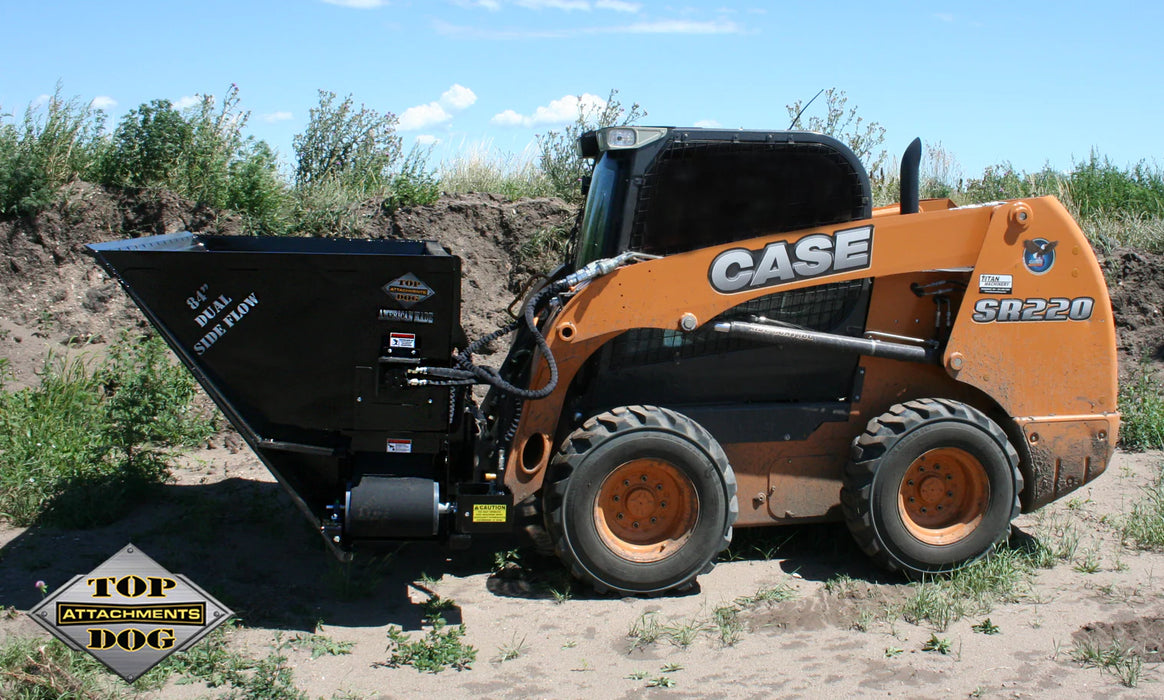

Side Flow Bucket for Light Material

Top Dog Side Flow Bucket with beater bar for light material

Improve efficiency when handling and spreading light materials with the Top Dog Dual Side Flow Light Material Bucket. This innovative skid steer attachment is designed to scoop, transport, and evenly discharge materials through dual side openings, making it ideal for spreading sawdust, mulch, silage, and other lightweight materialsacross large areas.

Unlike standard buckets, the Dual Side Flow system allows material to exit from both sides of the bucket, helping operators distribute materials quickly and evenly while driving. The system uses adjustable dual control valves, allowing you to control both belt speed and direction for precise material flow.

To ensure consistent operation, the bucket includes a beater bar system that prevents materials from piling up or clogging the discharge system. Built with heavy-duty steel construction, reinforced wear bars, and a durable conveyor belt, this attachment is engineered for long-lasting performance in agricultural, landscaping, and contractor applications.

With its convertible functionality, the bucket can also be positioned to operate like a standard bucket when needed, giving operators additional versatility on the job site.

Proudly made in the USA, the Top Dog Dual Side Flow Bucket delivers a powerful combination of precision material spreading, durability, and operational efficiency.

Key Features

🔄 Dual-Side Discharge System

• Scoops material and discharges through two side openings

• Ideal for even distribution of light materials while driving

⚙️ Adjustable Belt Speed & Direction

• Dual control valves allow operators to adjust conveyor speed

• Control material flow and discharge direction

🛠 Beater Bar Anti-Clog System

• Prevents materials from piling up or clogging

• Ensures smooth and continuous operation

💪 Heavy-Duty Construction

• 3/16” bucket thickness with 3/8” reinforced wear bars

• 5/8” x 6” cutting edge

• Durable 5/16” thick 2-ply belt system

🇺🇸 American Made Quality

• Designed and manufactured in the USA by Top Dog Attachments

Specifications

Available Widths

• 72” Dual Side Flow Bucket

• 84” Dual Side Flow Bucket

Dimensions

• Overall Height: 44″

• Overall Depth: 52″

Capacity

• Struck Capacity: 46 cu. ft

• Heaped Capacity: 55.2 cu. ft

Hydraulics

• Flow Requirement: 15–20 GPM

• Belt Motors: 4.9 cu. in – Dual Motors

• Beater Bar Motor: 18.6 cu. in

• Hydraulic Couplers: Flat Face

• Hydraulic Hoses: 1/2″ – 2,500 PSI

Conveyor System

• Belt: 5/16″ thick, 2-ply Asphalt Belt or Chevron V-Style Belt

• Belt Speed: Adjustable via dual control valves

• Bearings: 1″ Pillow Block (2)

Construction

• Bucket Thickness: 3/16″

• Wear Bars: 3/8″

• Cutting Edge: 5/8″ x 6

• Mounting Plate: 5/16″

• Pivot Points: Grease Zerks

• Tensioners: Manual Adjustment (4 locations)

Weight

• 72″ Model: Approx. 1250 lbs

• 84″ Model: Approx. 1350 lbs

Why You Should Buy

✔ Spread materials evenly while driving
✔ Reduce labor and increase spreading efficiency
✔ Adjustable conveyor gives precise control of material flow
✔ Durable construction built for demanding environments
✔ Ideal for farm, landscaping, and contractor operations

Ideal Applications

• Spreading sawdust in livestock barns

• Mulch distribution in landscaping projects

• Handling silage and agricultural materials

• Light material spreading in construction and property maintenance

Frequently Asked Questions

What materials can this bucket spread?
This bucket is designed for light materials such as sawdust, mulch, silage, and similar loose materials.

Can I control how fast the material spreads?
Yes. The bucket includes dual control valves, allowing you to adjust belt speed and direction for precise spreading.

Will the bucket clog with light material?
No. The beater bar system prevents material buildup, keeping the discharge system flowing smoothly.

What type of hydraulic flow is required?
The bucket requires 15–20 GPM hydraulic flow for proper operation.

Is the belt customizable?
Yes. You can choose between 2-ply asphalt belt or Chevron V-style belt, and the team will confirm your preference before shipping.

Lead Time

Please allow 4–6 weeks lead time for all Dual Side Flow Buckets due to manufacturing demand. Call +1 307-417-6686 for more info.
