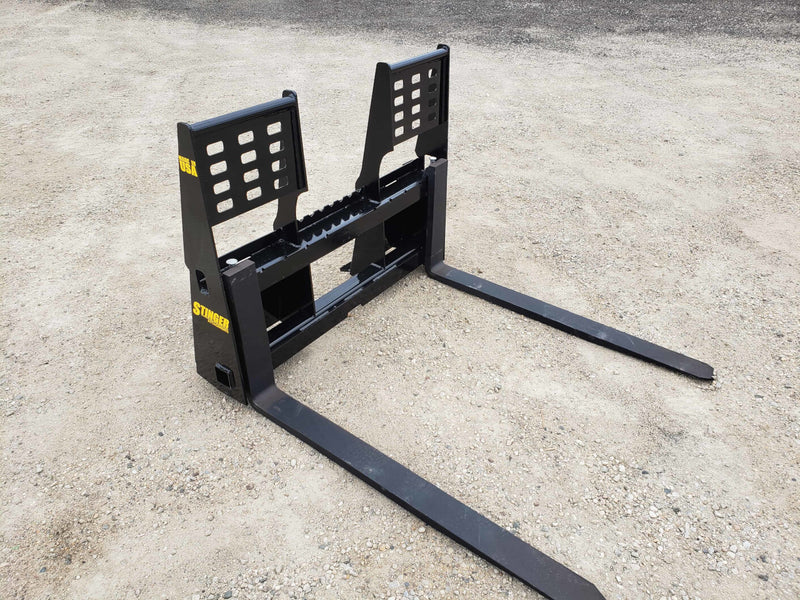

Pallet Forks Attachment (PF)

The Stinger Attachments pallet forks are designed for heavy-duty use. We use industry-leading USA forks by Cascade Corp. They are backed by a 3-year warranty. Our frame design features a heavy-duty machined 1.25" x 3" top carrier bar — this top bar is then welded to a 3" x 2" structural tube to make the top support even stronger. The bottom carrier is a ½" x 3" flat welded to a 3" x 3" support tube. Our main carriage uprights are constructed of 3/8" grade 50 steel. Our skid steer loader pallet forks are manufactured in a jig fixture by man to ensure high tolerances. Our high tolerances are important because this allows the fork to slide easily.

We aim for efficiency and strength in our pallet fork construction. Each fork on our standard pallet fork attachment can hold up to 4000, or 5500 pounds. Our forks also feature structural steel materials that you can find used in industrial construction and equipment because of their superior strength.

• Fork Options: (48″ Long) 4000 or 5500lbs (60″ Long) 5500lbs
• Fork Length: 48"
• Carriage Width: 48"
• Total Height: 39"
• Total Weight: 470 lbs
• 3-Year Fork Warranty
• 1-Year Frame Warranty
• Walk-thru standard
• 1.25×3" top machined carrier bar

• The 48″ Pallet Forks come standard with a Cascade 4000 lb fork.
• The Pallet Forks come with a three-year warranty.
• Our frames are made in-house. They are backed by a one-year warranty.
