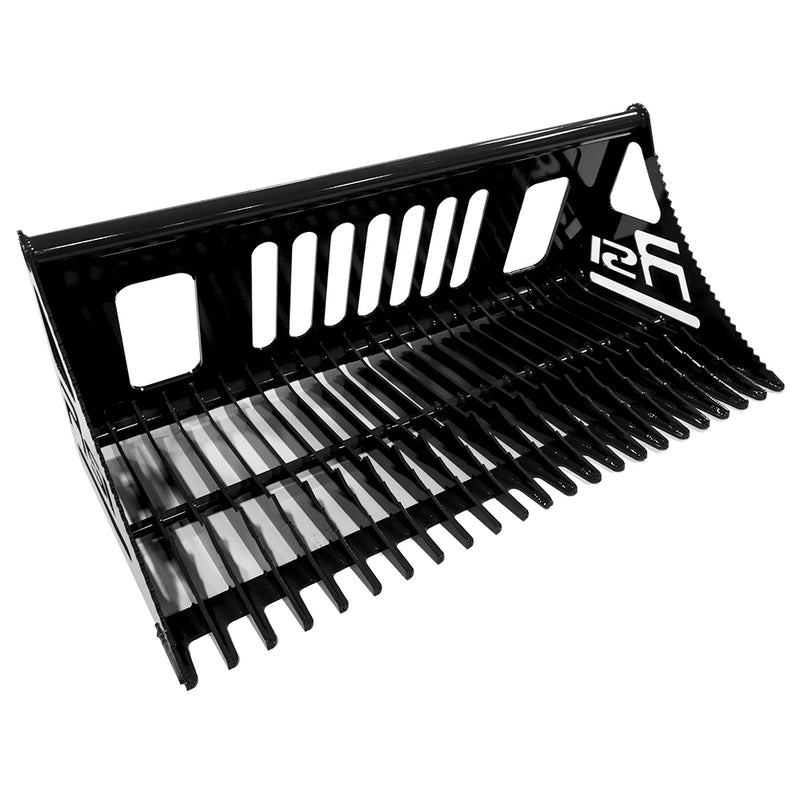

Kioti Compact Tractor Rock Bucket 48″

The Redline Systems Inc. 48″ Kioti Compact Tractor Rock Bucket uses our popular rock bucket design and makes it available for any Kioti tractor that has a quick attach system. It is designed to be like the bigger skid loader rock buckets using a 2″ or 3″ tine spacing but scaled down to work on the Kioti compact and sub-compact tractors. It’s constructed from 1/4″ A36 plate so it’s built to handle the abuse but not be so heavy that the tractor can’t pick it up and still utilize is maximum lift capacity.

Two 2″ tubes run on the top and bottom of the bucket to help with torsional twist in the bucket and keep it flat. It has a solid back with cleanout slot cut into the back to help let loose material fall through but keep in the larger rocks and debris in the bucket. Built to look as if it were a factory made bucket.

2″ Rock Bucket Specifications:

• Mounting Type: Quick Attach
• Width: 48″
• Height: 16″
• Depth: 25″
• Weight: 178 lbs.
• Material: Made from 1/4″ A36 plate
• Tine Spacing: 3″
• Tine Finger Length: 3″ tine finger length
• Powder coated black color finish
• Always Made in the USA

3″ Rock Bucket Specifications:

• Mounting Type: Quick Attach
• Width: 48″
• Height: 16″
• Depth: 25″
• Weight: 162 lbs.
• Material: Made from 1/4″ A36 plate
• Tine Spacing: 3″
• Tine Finger Length: 3″ tine finger length
• Powder coated black color finish
• Always Made in the USA

Compatible Models (call to verify):

• Kioti CS2210 Rock Bucket
• Kioti CS2220 Rock Bucket
• Kioti CS2510 Rock Bucket
• Kioti CS2520 Rock Bucket
• Kioti CX2510 Rock Bucket
• Kioti CX2510 HST Rock Bucket
• Kioti CK2610 Rock Bucket
• Kioti CK2610 HST Rock Bucket
