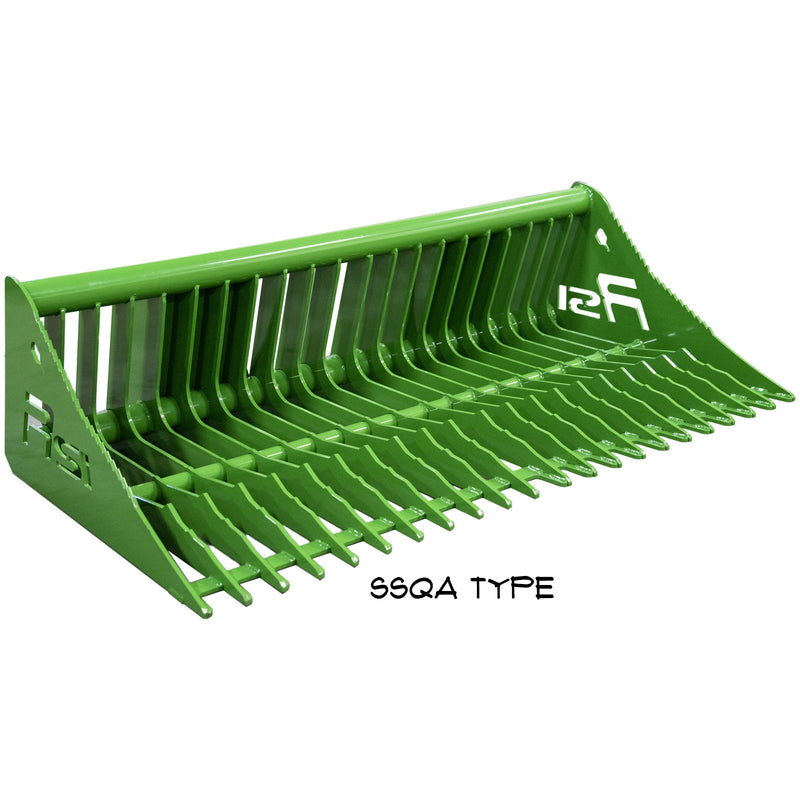

John Deere Rock Bucket for Utility Tractor 5 and 6 Series

This John Deere Rock Bucket for Utility Tractor 5 and 6 Series is built like the larger skid loader rock buckets, using 3″ tine spacing scaled down for the John Deere Series 5 and Series 6 utility tractors. Available in a 72″ width with 3″ tines. It's a larger companion to the John Deere Rock Buckets built for Series 1–4 tractors.

Compatible with most 5 Series tractors (including the 5050E, 5060E, 5067E, 5075E, 5090E, 5100E, 5075M, 5095M, 5105M, 5120M, and 5130M) and most 6 Series tractors (including the 6105E, 6120E, 6135E, 6110M, 6120M, 6130M, 6140M, 6145M, 6155M, 6175M, and 6195M).

The bucket is constructed from 3/8″ Grade 50 steel — built to handle the abuse without adding so much weight that the tractor loses lift capacity. Two 2″ tubes run along the top and bottom of the bucket to resist torsional twist and keep it flat. The solid back has clean-out slots cut into it to let loose material fall through while retaining larger rocks and debris.

Specifications

• Width: 72″
• Height: 22″
• Depth: 34″
• Weight: 625 lbs
• Material: 3/8″ Grade 50 steel
• Tine spacing: 3″
• Tine finger length: 3″
• Attachment type: Choose from SSQA, hook and pin, or global/euro
• Powder coated John Deere Green finish
• Made in the USA

Compatible Models (call to verify)

• John Deere 5045D
• John Deere 5045E
• John Deere 5050E
• John Deere 5055D
• John Deere 5055E
• John Deere 5060E
• John Deere 5065E
• John Deere 5065M
• John Deere 5067E
• John Deere 5075E
• John Deere 5075M
• John Deere 5083E
• John Deere 5085E
• John Deere 5085M
• John Deere 5090E
• John Deere 5090M
• John Deere 5090R
• John Deere 5093E
• John Deere 5095M
• John Deere 5100E
• John Deere 5100R
• John Deere 5105M
• John Deere 5115M
• John Deere 5120M
• John Deere 5125M
• John Deere 5125R
• John Deere 5130M
• John Deere 6105D
• John Deere 6105E
• John Deere 6105M
• John Deere 6105R
• John Deere 6110M
• John Deere 6110R
• John Deere 6115D
• John Deere 6115M
• John Deere 6115R
• John Deere 6120E
• John Deere 6120M
• John Deere 6120R
• John Deere 6125M
• John Deere 6125R
• John Deere 6130D
• John Deere 6130M
• John Deere 6130R
• John Deere 6135E
• John Deere 6140D
• John Deere 6140M
• John Deere 6140R
• John Deere 6145M
• John Deere 6145R
• John Deere 6150M
• John Deere 6150R
• John Deere 6155M
• John Deere 6155R
• John Deere 6170M
• John Deere 6170R
• John Deere 6175M
• John Deere 6175R
• John Deere 6190R
• John Deere 6195M
• John Deere 6195R

Contact us at (307) 417-6686 for help confirming fitment for your machine.
