Pallet Fork Attachment for John Deere

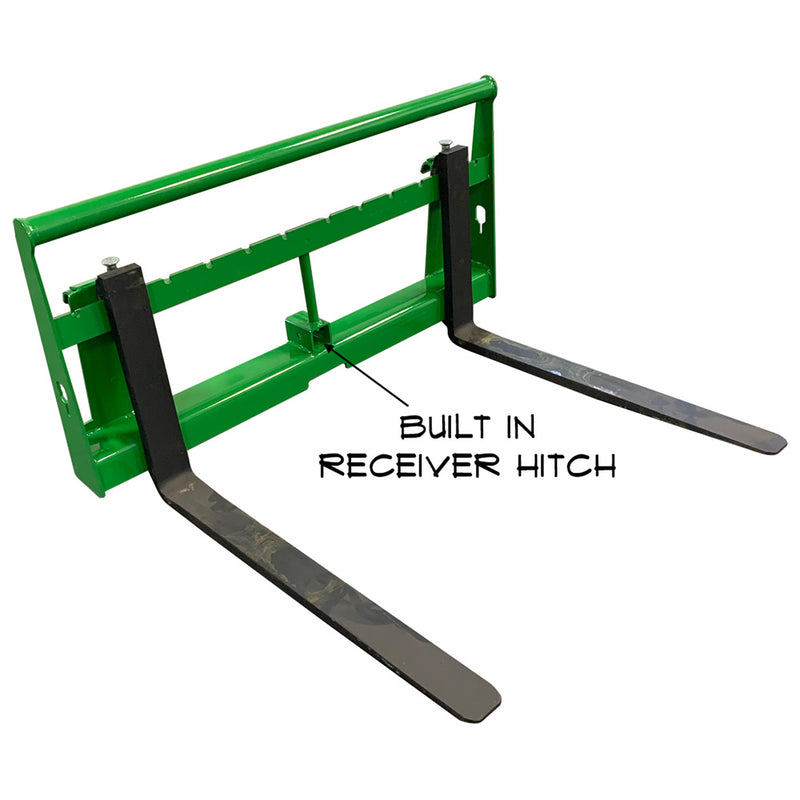

Product Update – This unit now comes with a 2″ receiver hitch built in. See photo 2, updated photos coming soon.

The Redline Systems Inc. John Deere Pallet Forks were designed specifically for use and capacity of the John Deere sub compact tractor line. Being these tractors have such limited lift capacity everything you put in front of it has to kept light yet durable enough to handle the abuse these tractors can take.

Summary
This unit has been to designed to maximize the lift capacity of John Deere series 1,2,3 and 4 series tractors and will keep the weight as close to the loader pivot points as possible for maximum lifting force. The carriage is constructed of all 1/4″ A36 steel plate. The hitch mounts are made with 1/4″ A36 steel plate and are compatible with John Deere’s proprietary quicktach system. There is also tie off point cut into the side rail of the carriage to help hold something on the forks or assist in tying the tractor down on a trailer. And an 8″ tall back stop integrated into the carriage.

About the forks
Choose from 36″ or 42″. The fork rails are made from 3/8″ plate. They are built to be durable and lightweight to handle the lift capacity of the John Deere subcompact tractors and John Deere compact tractors, which ever one you may have. They are a center load design so they can’t fall off the end of the rail and are adjustable in width along the rail.

Why are these better than clip on forks?
These are a much better option for people that want to use their tractor for moving palletized material around or picking up logs. The clip on bucket forks work for some people but eventually end up bending and distorting the factory dirt bucket and the lift capacity is very minimal due to where the bulk of the weight is positioned in front of the bucket.

These pallet forks for John Deere sub-compact tractors are a must have attachment and will end up on the tractor more than any other attachment in most cases.

Pallet Forks Specifications:

• *New – built in 2″ receiver hitch
• Fork Length: 36″ or 42″
• Carriage Width: 49″
• Height: 24″
• Depth: 9″ without forks
• Weight: 36″ forks and carriage 184 lbs, 42″ forks and carriage 230 lbs
• Frame Material: Made from 1/4″ A36 plate
• Fork Dimensions: 1.125″ x 3″ x 36″ or 42″
• Fork Width: Adjustable
• Lightweight design maximizing lift capacity
• Rated for up to 2200 lift capacity (depending on model of loader)
• Integrated tie off point inside rail
• Compatible with John Deere’s proprietary quicktach system
• Powder coated John Deere Green finish
• Always Made in the USA

Compatible Models (call to verify):

• John Deere 1023E Pallet Forks
• John Deere 1025R Pallet Forks
• John Deere 1025R TLB Pallet Forks
• John Deere 1026R Pallet Forks
• John Deere 2025R Pallet Forks
• John Deere 2032R Pallet Forks
• John Deere 2038R Pallet Forks
• John Deere 3025D Pallet Forks
• John Deere 3035D Pallet Forks
• John Deere 3043D Pallet Forks
• John Deere 3025E Pallet Forks
• John Deere 3032E Pallet Forks
• John Deere 3033 Pallet Forks
• John Deere 3038E Pallet Forks
• John Deere 3033R Pallet Forks
• John Deere 3039R Pallet Forks
• John Deere 3046R Pallet Forks
• John Deere 4105 Pallet Forks
• John Deere 4044M Pallet Forks
• John Deere 4044R Pallet Forks
• John Deere 4052R Pallet Forks
• John Deere 4052M Heavy Duty Pallet Forks
• John Deere 4066R Pallet Forks
• John Deere 4066M Heavy Duty Pallet Forks
• John Deere 1 series attachments
• John Deere 2 series attachments
• John Deere 3 series attachments
• John Deere 4 series attachments
