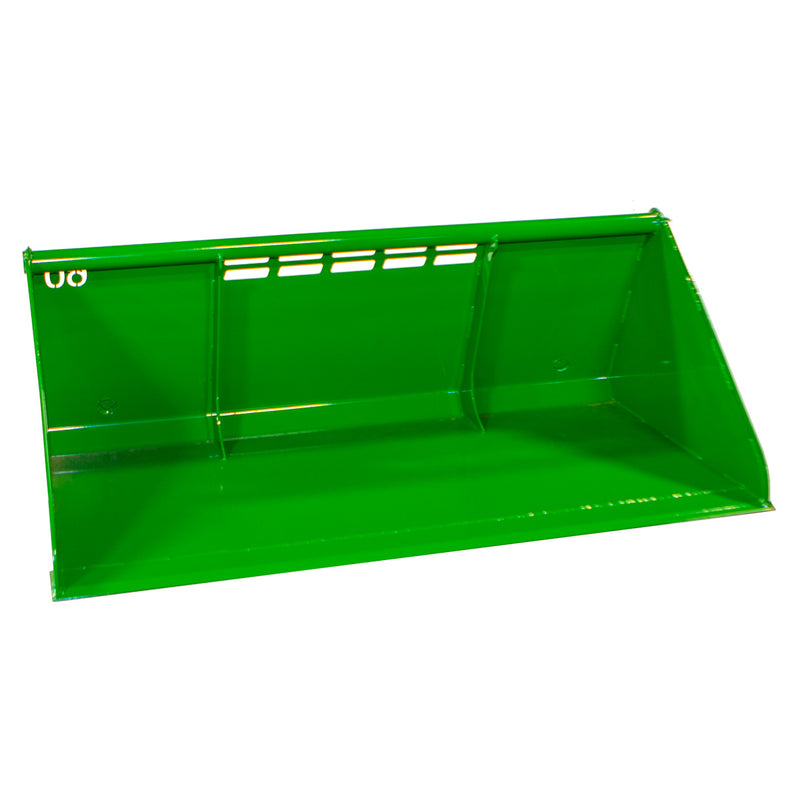

John Deere Compact Tractor Light Material/Snow Bucket 60”

The Redline Systems Inc. 60″ John Deere Compact Tractor Light Material and Snow Bucket has a larger capacity than the factory bucket for lifting items that are bulky and light like leaves, mulch, wood chips, firewood and snow. This bucket was designed specifically for John Deere subcompact tractors and uses John Deere’s factory quicktach system.

The shell of the bucket is constructed with 10 gauge mild steel to help keep the weight down. This shell is then is reinforced with 1/4″ plates along the front leading edges of the bucket side the keep them from bending and deforming. There are also two 1/4″ internal back stiffeners to help keep the bucket straight. A 1 3/4″ tube runs the width of the bucket and is tied into the mounts to help support the back of the bucket with front to back flexing. There is a 1/2″ x 4″ 1055 grade carbon steel cutting edge welded into the front of the bucket. The bottom of the bucket uses three 3/8″ x 3″ A36 wear strips to help protect the bottom of the bucket from getting holes worn into it. There is one strip down the middle of the bucket and two along the bottom of the bucket side to help with wear and act as a curb guard to protect the bucket sides from damage.

Light Material and Snow Bucket Specifications:

• Width: 60″
• Height: 22″
• Depth: 30″
• Weight: TBD lbs.
• Capacity: Approximately 1/2 yard
• Cutting Edge: 1/2″ x 4″ single bevel 1055 carbon steel
• Material: 1/4″ reinforced bucket sides
• Material: 3/8″ x 3″ wear strips across the bottom and sides edges
• Compatible with John Deere’s proprietary quicktach system
• Powder coated John Deere Green finish
• Always Made in the USA

Compatible Models (call to verify):

• John Deere 1023E Light Material and Snow Bucket
• John Deere 1025R Light Material and Snow Bucket
• John Deere 1025R TLB Light Material and Snow Bucket
• John Deere 1026R Light Material and Snow Bucket
• John Deere 2025R Light Material and Snow Bucket
• John Deere 2032R Light Material and Snow Bucket
• John Deere 2038R Light Material and Snow Bucket
• John Deere 3025D Light Material and Snow Bucket
• John Deere 3035D Light Material and Snow Bucket
• John Deere 3043D Light Material and Snow Bucket
• John Deere 3025E Light Material and Snow Bucket
• John Deere 3032E Light Material and Snow Bucket
• John Deere 3033 Light Material and Snow Bucket
• John Deere 3038E Light Material and Snow Bucket
• John Deere 3033R Light Material and Snow Bucket
• John Deere 3039R Light Material and Snow Bucket
• John Deere 3046R Light Material and Snow Bucket
• John Deere 4105 Light Material and Snow Bucket
• John Deere 4044M Light Material and Snow Bucket
• John Deere 4044R Light Material and Snow Bucket
• John Deere 4052R Light Material and Snow Bucket
• John Deere 4052M Heavy Duty Light Material and Snow Bucket
• John Deere 4066R Light Material and Snow Bucket
• John Deere 4066M Heavy Duty Light Material and Snow Bucket
• John Deere 1 series attachments
• John Deere 2 series attachments
• John Deere 3 series attachments
• John Deere 4 series attachments

Occasionally, this product may be called:

John Deere Subcompact Tractor Light Material and Snow Bucket, John Deere Compact Tractor Light Material and Snow Bucket, Light Material Bucket for compact tractors, Snow Bucket for subcompact tractors, Compact Utility Tractor Light Material and Snow Bucket or Utility Tractor Light Material and Snow Bucket for John Deere tractors.
