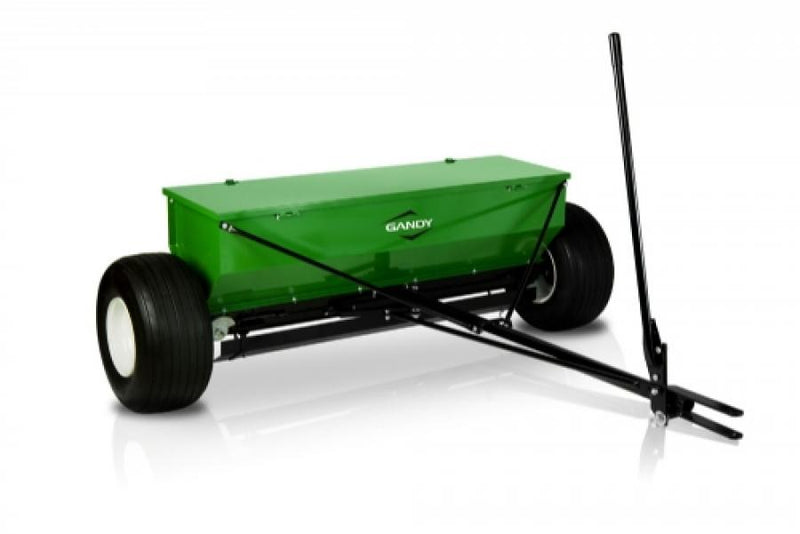

Gandy Drop Spreader with Tow Hitch and Pneumatic Wheels
Features: Precision-matched bottom and slide with 1-inch diamond openings Positive shutoff lever closes shutter slide, stopping flow (optional 12-volt electric & hydraulic shutoffs available) Two steel tri-bar rotors are independentl...
Features:
- Precision-matched bottom and slide with 1-inch diamond openings
- Positive shutoff lever closes shutter slide, stopping flow (optional 12-volt electric & hydraulic shutoffs available)
- Two steel tri-bar rotors are independently driven from end wheels
- Adjustable angle spread plate
- Weather tight cover with latches
- Choice of 16 and 18-inch pneumatic tires
Specifications:
| Models | |||
| 6504 | 6505 | 6506 | |
| Hopper Capacity (lbs.) | 260 | 325 | 390 |
| Hopper Capacity (cu. ft.) | 4 (113dm3) | 5 (142dm3) | 6 (170dm3) |
| Hopper Length (in.) | 48.5 | 60.5 | 72.5 |
| Hopper Width (in.) | 14.25 | 14.25 | 14.25 |
| Hopper Depth (in.) | 15 | 15 | 15 |
| Hopper Material | Steel | Steel | Steel |
| Finish | Powder Coat | Powder Coat | Powder Coat |
| Opening Size - Diamond Shape (in.) | 1 | 1 | 1 |
| Spacing of Openings (in.) | 2.352 | 2.260 | 2.188 |
| Total Openings | 20 | 25 | 30 |
| Tow-Hitch Option | Yes | Yes | Yes |
| Ground Clearance - 16" Tires (in.) | 6 | 6 | 6 |
| Ground Clearance - 18" Tires (in.) | 7 | 7 | 7 |
| Inside Tire-to-Tire Width - 16" (in.) | 50 | 62 | 74 |
| Inside Tire-to-Tire Width - 18" (in.) | 50 | 62 | 74 |
| Center Tire-to-Tire Width - 16" (in.) | 54.5 | 66.5 | 78.5 |
| Center Tire-to-Tire Width - 18" (in.) | 59 | 71 | 83 |
| Overall Width - 16" Tires (in.) | 59 | 71 | 83 |
| Overall Width - 18" Tires (in.) | 67 | 79 | 91 |
| Tire Width - 16" (in.) | 3.25 | 3.25 | 3.25 |
| Tire Width - 18" (in.) | 8 | 8 | 8 |
Product Specifications
| Brand | Gandy |
| SKU | 6504T16 |
| Weight | 230.0 lb |
