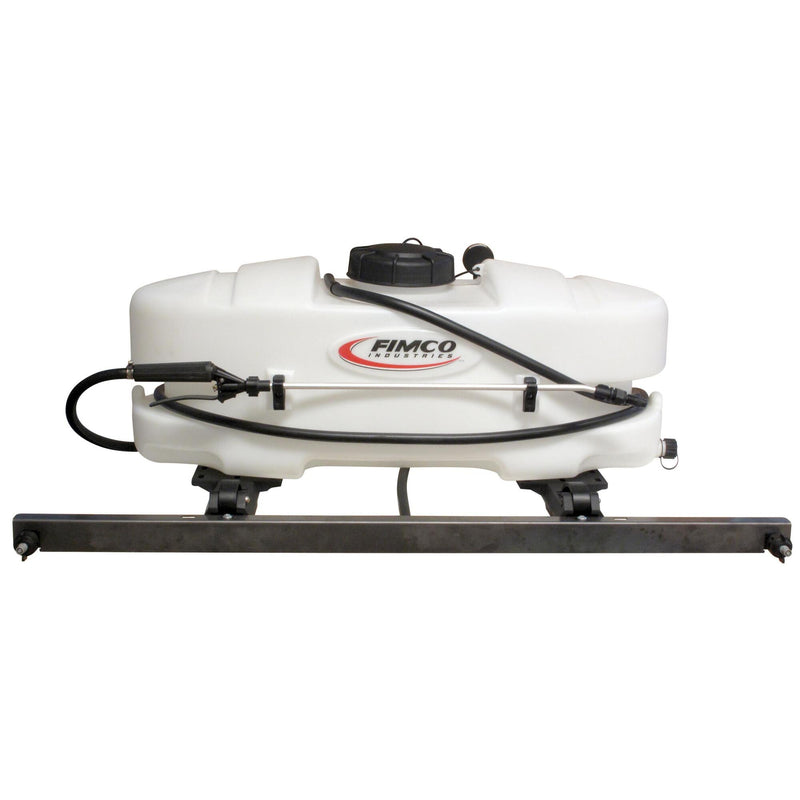

FIMCO 15 gallon ATV Sprayer
Fimco ATV Sprayer, 2.4 GPM, 15 Gallon, 60 PSI, Model# ATV-15-2-QRThe FIMCO 15 Gallon ATV Sprayer has our basic 2 nozzle spraying boom offering the versatility and efficiency needed to spray tight spaces or larger areas. The UV resistant,...
Fimco ATV Sprayer, 2.4 GPM, 15 Gallon, 60 PSI, Model# ATV-15-2-QR
The FIMCO 15 Gallon ATV Sprayer has our basic 2 nozzle spraying boom offering the versatility and efficiency needed to spray tight spaces or larger areas. The UV resistant, molded polymer tank has a 5in. tethered lid for easy access and is completely drainable. Convert from a Spot Sprayer to an ATV Sprayer with the quick release mounting bracket, allowing for simple installation or removal of the spray boom. This model 4 wheeler sprayer features the High Flo High Performance 2.4 GPM 12 Volt Pump with inline fuse protection. The Lever Spray Wand features an adjustable spray pattern poly tip which adjusts from a stream, fan or cone and distributes up to 30ft. of horizontal spray, 16ft. of vertical spray and comes with 15ft. of 3/8in. hose. The 2 nozzle boom provides extra protection by shielding the TeeJet FloodJet nozzles for less wind drift with no drip check valves and offers 7ft. of total spray coverage. Our FIMCO exclusive manifold places pressure control and boom operation at your fingertips to conveniently fine tune your spray pattern. This ATV sprayer offers the versatility and efficiency needed to spray tight spaces or larger areas and allows easy, accurate and consistent liquid application of lawn care products. The best sprayer for controlling weeds, insects and diseases on lawns, ball fields, parks, acreages and small pastures.
Features + Benefits
- 2.4 GPM High Flo High Performance Pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life
- Durable 15 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
- Features FIMCOs exclusive quick release mounting system allowing you to quickly remove, change or store your spraying boom
- Lever grip spray wand features an aluminum lance and a adjustable polymer nozzle that delivers 30 feet of horizontal spray and 16 feet of vertical spray. Plus 15 feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
- Made for these types of applications: weed control, pest control, fungus control, fertilizing, watering
- Rigid steel 2 nozzle boom features Teejet tips delivers 7 feet of total spray coverage with air induction tips for less wind drift and no drip check valves
Specifications
| Attribute | Specification |
|---|---|
item# |
6101689 |
Brand |
FIMCO |
Manufacture's Warranty |
1 year limited warranty |
Ship Weight |
25.75 LB |
Tank Size |
15 Gal |
Flow |
2.4 GPM |
Pressure |
60 PSI |
Seal Type |
Viton |
Boomless |
No |
Spray Height |
16 ft |
Broadcast Width |
7 ft |
Horizontal Spray Distance |
30 ft |
| Attribute | Specification |
|---|---|
Tank Material |
Poly |
Spray Pattern |
Adjustable Pattern Tip |
Spray Gun Type |
Lever Spray Wand |
Nozzles (qty.) |
2 |
Wand Length |
29.5 in |
In-Line Switch |
Yes |
Tow Behind Cart Included |
No |
Pump Type |
Diaphragm Pump |
Hose Length |
180 in |
Product Weight |
26.0000 lb |
Dimensions L x W x H (in.) |
34.25 x 14.75 x 12.75 in |
Product Specifications
| Brand | Fimco |
| SKU | 6101689 |
| Weight | 26.0 lb |
