See more by: Stinger Attachments
SKU: BF

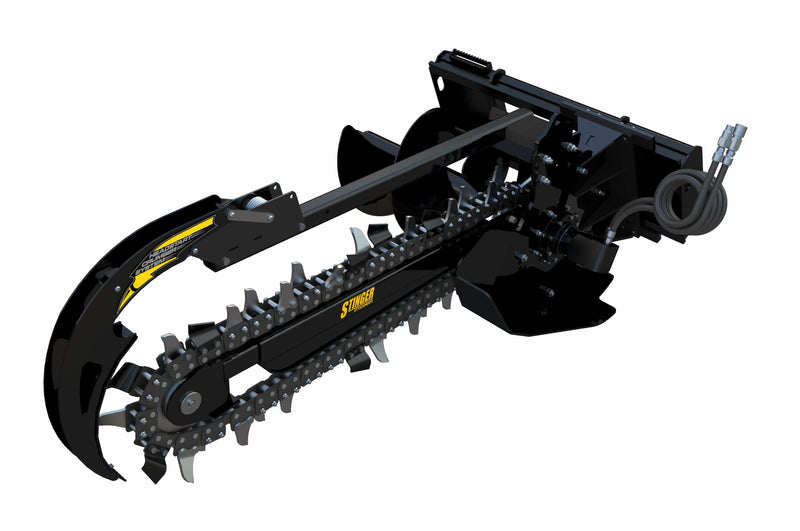

Bigfoot XD Trencher (BF)
Features Includes SkidSteer Mount, Or EuroGlobal Headstart Crumber System (patent pending) Adjustable Skid Foot to maintain constant digging depth Skid Foot is visible from the cab Frame can be side shifted for digging close to perman...
$ 7,480.00
Tax and shipping calculated at checkout.
In Stock — ships in 24h · delivers in 5–7 business days
Model:
Chain Type:
Cut Width:
Guaranteed Safe & Secure Checkout
VISA
Mastercard
Apple Pay
G Pay
Shop Pay
Features
- Includes SkidSteer Mount, Or EuroGlobal
- Headstart Crumber System (patent pending)
- Adjustable Skid Foot to maintain constant digging depth
- Skid Foot is visible from the cab
- Frame can be side shifted for digging close to permanent structures
- 3 different Chain options, Earth, Combo, and Diggatac
- Industry Leading Warranty
Ideal Use & Machine Suitability
- Pipe laying for irrigation, underground power and communications, road repairs, and general construction
- Excavators up to 8 ton, skid steer loaders, backhoes
| SPECIFICATION | XD 900 | XD1200 | XD1200 (HI-FLOW) | XD1500 (HI-FLOW) |
| CUTTING DEPTH | UP TO 36” | UP TO 48” | UP TO 48” | UP TO 60” |
| CUTTING WIDTHS | 6” / 8” /10” / 12” | 6” / 8” /10” / 12 | 6” / 8” /10” / 12 | 6” / 8” /10” / 12 |
| FOOT DEPTH PRESETS | 18”,24”30”36” | 24”,32”,40”,48” | 24”,32”,40”,48” | 30”,40”,48”60” |
| RECOMMENDED FLOW | 16-30GPM | 16-30GPM | 28-45GPM | 28-45GPM |
| MOTOR TYPE | 2K BELL EATON | 2K BELL EATON | 6K BELL EATON | 6K BELL EATON |
| MAX PRESSURE – DO NOT EXCEED | 3500 PSI @ 16GPM | 3500 PSI @ 16GPM | 3500 PSI @ 34GPM | 3500 PSI @ 34GPM |
| MAX FLOW – DO NOT EXCEED | 25GPM @ 2900 PSI | 25GPM @ 2900 PSI | 45GPM @ 2800 PSI | 45GPM @ 2800 PSI |
| MAX CONTINUOUS POWER | 34 HP | 34 HP | 67 HP | 67 HP |
| LENGTH | 76” | 100” | 100” | 106” |
| HORIZONTAL HEIGHT | 26” | 31” | 31” | 33” |
| WIDTH | 48” | 48” | 48” | 45” |
| WEIGHT | 575 LBS | 855 LBS | 935 LBS | 1016 LBS |
XD 900 PRICING
4FT DIGGING DEPTH
| Chain Type | Cut Width | Price |
| Earth (General Digging) | 6in | $7480 |
| Earth (General Digging) | 8in | $7650 |
| Earth (General Digging) | 10in | $7960 |
| Earth (General Digging) | 12in | $8230 |
| Combo (30%Earth, 70% Carbide Teeth) | 6in | $7850 |
| Combo (30%Earth, 70% Carbide Teeth) | 8in | $8010 |
| Combo (30%Earth, 70% Carbide Teeth) | 10in | $8110 |
| Combo (30%Earth, 70% Carbide Teeth) | 12in | $8390 |
| Diggatac (fully Carbide Teeth) | 6in | $7860 |
| Diggatac (fully Carbide Teeth) | 8in | $8030 |
| Diggatac (fully Carbide Teeth) | 10in | $8200 |
| Diggatac (fully Carbide Teeth) | 12in | $8410 |
XD 1200 PRICING
4FT DIGGING DEPTH
| Chain Type | Cut Width | Price |
| Earth (General Digging) | 6in | $7660 |
| Earth (General Digging) | 8in | $7840 |
| Earth (General Digging) | 10in | $8140 |
| Earth (General Digging) | 12in | $8420 |
| Combo (30%Earth, 70% Carbide Teeth) | 6in | $8030 |
| Combo (30%Earth, 70% Carbide Teeth) | 8in | $8210 |
| Combo (30%Earth, 70% Carbide Teeth) | 10in | $8300 |
| Combo (30%Earth, 70% Carbide Teeth) | 12in | $8580 |
| Diggatac (fully Carbide Teeth) | 6in | $8050 |
| Diggatac (fully Carbide Teeth) | 8in | $8230 |
| Diggatac (fully Carbide Teeth) | 10in | $8390 |
| Diggatac (fully Carbide Teeth) | 12in | $8600 |
XD 1200 HI-FLOW PRICING
4FT DIGGING DEPTH
(Combo, or Diggatac teeth)
| Chain Type | Cut Width | Price |
| Combo (30%Earth, 70% Carbide Teeth) | 6in | $9240 |
| Combo (30%Earth, 70% Carbide Teeth) | 8in | $9400 |
| Combo (30%Earth, 70% Carbide Teeth) | 10in | $9500 |
| Combo (30%Earth, 70% Carbide Teeth) | 12in | $9780 |
| Diggatac (fully Carbide Teeth) | 6in | $9250 |
| Diggatac (fully Carbide Teeth) | 8in | $9420 |
| Diggatac (fully Carbide Teeth) | 10in | $9590 |
| Diggatac (fully Carbide Teeth) | 12in | $9800 |
XD 1500 HI-FLOW PRICING
5FT DIGGING DEPTH
(Combo, or Diggatac teeth)
| Chain Type | Cut Width | Price |
| Combo (30%Earth, 70% Carbide Teeth) | 6in | $9740 |
| Combo (30%Earth, 70% Carbide Teeth) | 8in | $10,020 |
| Combo (30%Earth, 70% Carbide Teeth) | 10in | $10,050 |
| Combo (30%Earth, 70% Carbide Teeth) | 12in | $10,790 |
| Diggatac (fully Carbide Teeth) | 6in | $9800 |
| Diggatac (fully Carbide Teeth) | 8in | $10,070 |
| Diggatac (fully Carbide Teeth) | 10in | $10,130 |
| Diggatac (fully Carbide Teeth) | 12in | $10,850 |
Product Specifications
| Brand | Stinger Attachments |
| SKU | BF |
| Weight | 575.0 lb |
