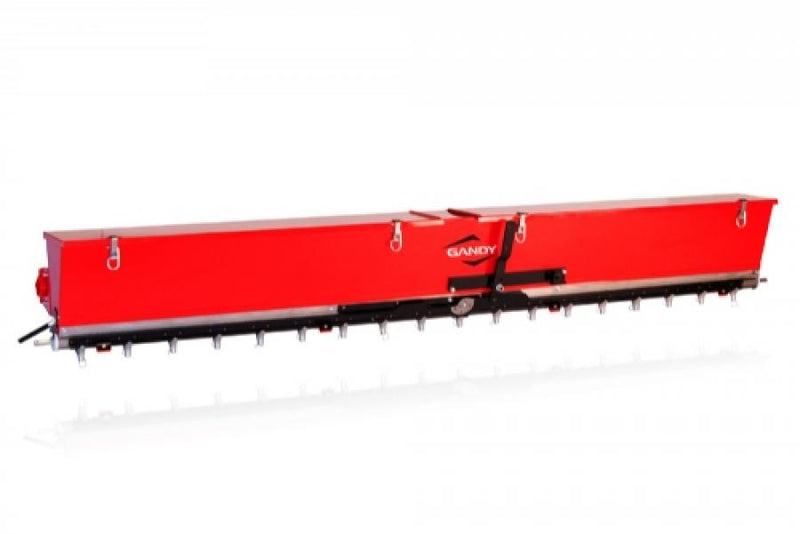

410L Linear Seeder/Chemical Applicator. 10-ft., 5 cu. ft., 20-outlet hopper with stainless steel bottom and slide plus mounting rail. Ideal for heavy-core granules or sowing seeds when mounted on field implements for pre-plant applications. Includes weather tight lid with latches and 5-bladed rubber rotor bar for internal agitation. Standard hand-lever shutoff. Note: hydraulic or electric drive ordered separately along with optional hydraulic shutoff. User supplies all hydraulic hoses and fittings.
Linear Seeder/Chemical Applicator for Mounting on Field Implements
Features
- 1/2 cu. ft. or 20-lb/ft. per ft. capacity
- Internal hexagon shaft with 5-bladed resilient rubber rotor
- 2" x 2" mounting bracket and rail
- 2" diamond tool bar included
- Bronze sleeve bearings are porous and oil impregnated
- Operator manual and rate charts
Note
User must provide mounting brackets, posts, etc. to install hopper on parent implement. If ordering the optional hydraulic shutoff, user to supply 1/4" hydraulic hoses for pressure and return lines along with a 1/4" NPT fitting. User's selecting hydraulic drive will need to supply 1/2" hydraulic hoses for pressure and return lines and a 1/2" NPT fitting.
FAQ
Can I connect multiple hoppers together?
Yes. Connector package for second hopper is No. 24218 or Contact us.
How do I attach the hopper to the implement?
A 2-inch diamond tool bar is supplied. However, user must provide mounting brackets, posts, etc. to install hopper on parent implement.
What are my drive options to turn the rotor bar?
A ¼-hp, 12V electric drive (24223) can run up to 19-ft. of hopper and a hydraulic drive (24219) is offered.
What sizes are available?
Available in lengths of 5-ft. and 10-ft.
What type of seeds can be used?
Alfalfa, Alsike Clover, Brome, Kentucky Blue Grass, Ladino Clover, Medium Red Clover, Millet, Rye Grass, Sudan, Sweet Clover, Timothy. Millet, Argentine Rape, Yellow Mustard, etc.
