ANBO GR120 Grapple Rake

The ANBO GR120 Grapple Rake handles machines in the 85-120 HP range: full-size skid steers, large compact track loaders, and utility tractors. AR400F steel construction (150,000-180,000 PSI yield strength) ensures the frame, tines, and grapple arms withstand the increased hydraulic force these larger machines deliver.

With 11 configurations spanning 6-inch and 8-inch tine spacing and widths from 61 to 96 inches, the GR120 covers a wide range of commercial applications. The larger cylinder bore and reinforced pivot points are sized specifically for the hydraulic output of 120 HP machines.

Key Features:

• AR400F steel construction throughout
• Designed for machines up to 120 HP

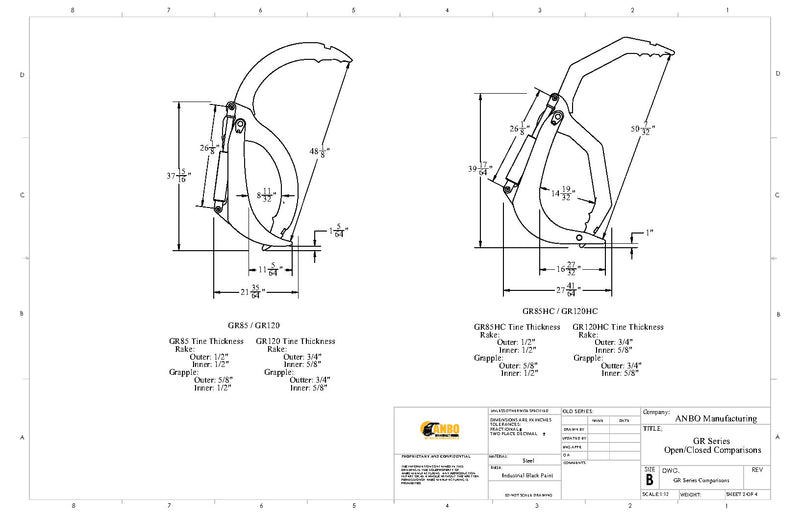

• 6-inch and 8-inch tine spacing options
• 11 width/spacing configurations from 61 to 96 inches
• Upgraded cylinder bore for higher hydraulic flow
