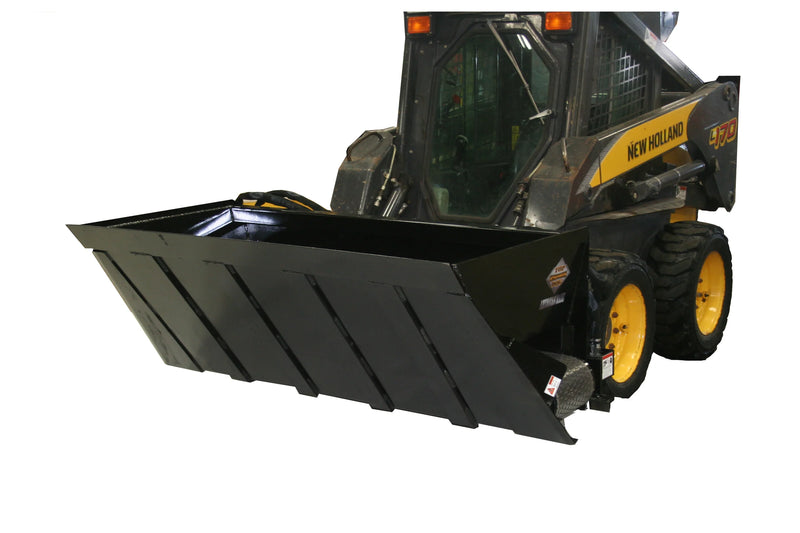

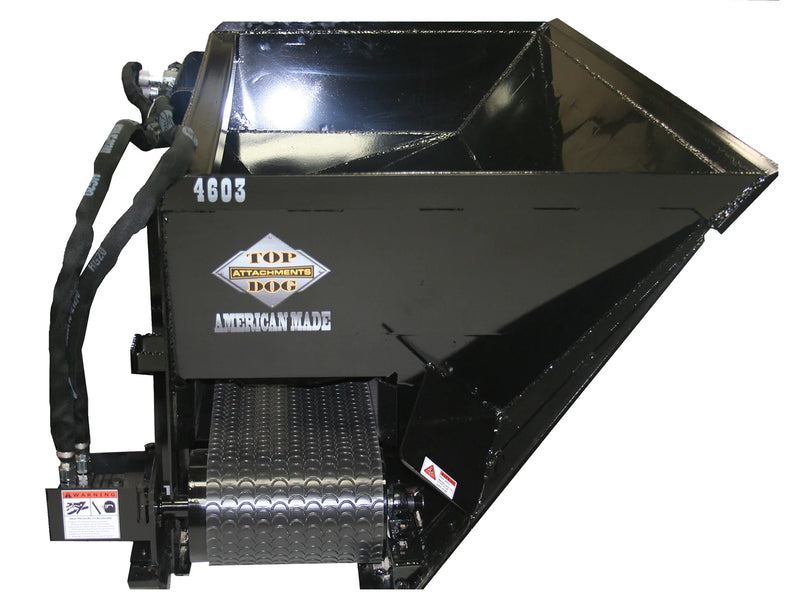

Side Flow Bucket for Heavy Material

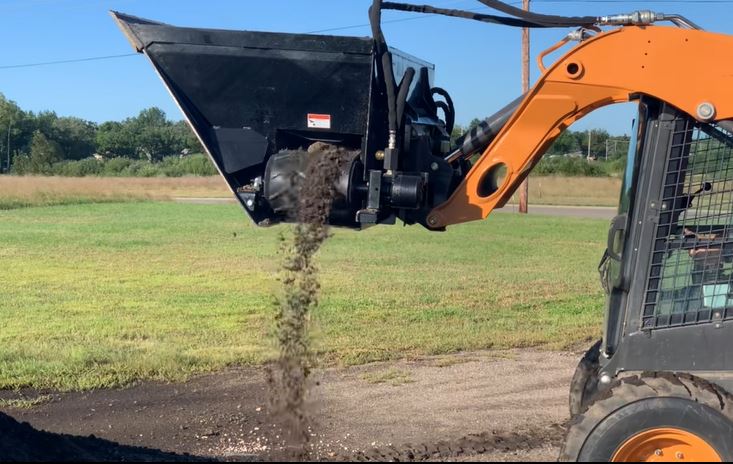

Handle and distribute dense materials with precision using the Top Dog Dual Side Flow Heavy Material Bucket. Designed for skid steers working in construction, road work, agriculture, and landscaping, this specialized attachment allows operators to scoop heavy material and discharge it evenly through two side openings while driving.
Unlike standard buckets that require repeated dumping and repositioning, the dual side flow system spreads material continuously, helping you complete jobs faster and with less labor. It is ideal for distributing rock, limestone, asphalt, gravel, and other dense materials across roads, driveways, job sites, and construction areas.
The bucket features dual belt motors with adjustable control valves, allowing operators to control the belt speed and direction for precise spreading. Built from high-strength steel with reinforced wear bars and a heavy-duty 3/4" cutting edge, this attachment is engineered to handle the stress of moving heavy materials in demanding environments.
Proudly made in the USA, the Top Dog Dual Side Flow Heavy Material Bucket delivers the durability, performance, and efficiency professionals rely on for tough jobs.
Key Features
🔄 Dual-Side Discharge System
Scoops material and discharges through two side openings
Ideal for spreading rock, limestone, asphalt, gravel, and other heavy materials
⚙️ Adjustable Conveyor Belt Control
Dual control valves allow operators to adjust belt speed
Conveyor can run in either direction for precise material placement
💪 Built for Heavy Material Applications
3/4” x 6” cutting edge for digging and scooping dense material
Reinforced structure designed for demanding job sites

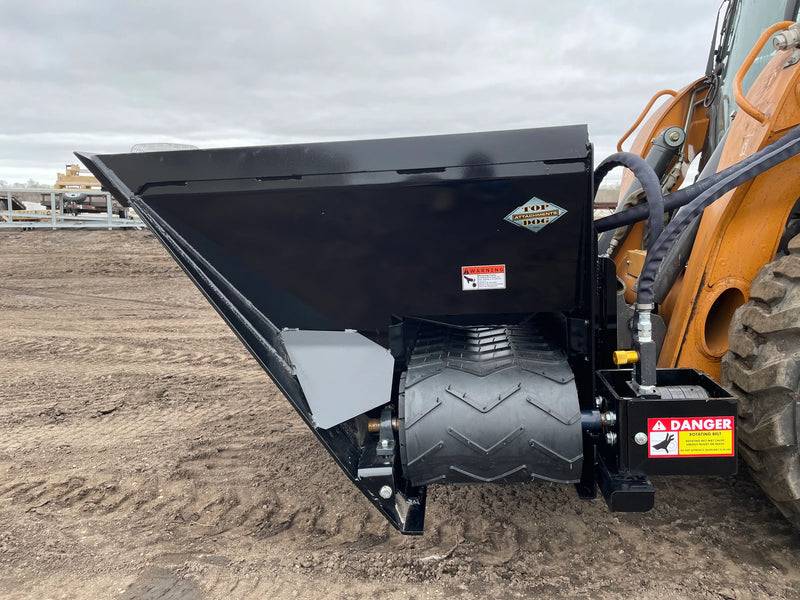

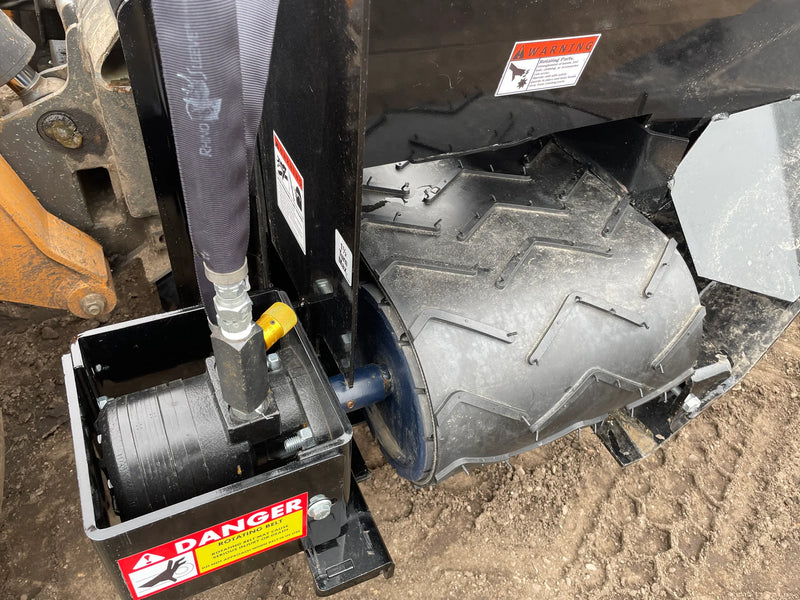

🛠 Durable Conveyor System
5/16” thick 2-ply belt system
Choice of Asphalt Belt or Chevron V Style Belt
🇺🇸 American Made
Built in the USA by Top Dog Attachments
Specifications
Available Widths
72” Dual Side Flow Bucket
84” Dual Side Flow Bucket
Dimensions
Overall Height: 30″
Overall Depth: 50″
Capacity
Struck Capacity: 17.5 cu. ft
Heaped Capacity: 21 cu. ft
Hydraulic Requirements
Flow: 15–20 GPM
Belt Motors: 4.9 cu. in – Dual Motors
Hydraulic Couplers: Flat Face
Hydraulic Hoses: 1/2″ – 2,500 PSI
Construction
Bucket Thickness: 3/16″
Wear Bars: 3/8″
Cutting Edge: 3/4″ x 6″
Mounting Plate: 5/16″ Universal Quick Attach
Bearings: 1″ Pillow Block (2)
Pivot Points: Grease Zerks
Tensioners: Manual Adjustment (4 locations)
Weight
72″ Model: Approx. 1000 lbs
84″ Model: Approx. 1100 lbs
Why You Should Buy
✔ Spread heavy materials while driving
✔ Reduce manual labor and equipment repositioning
✔ Adjustable belt allows precise material distribution
✔ Designed for high-demand construction and road work
✔ Durable American-made construction
Heavy vs Light Material Side Flow Buckets
Top Dog offers two types of Dual Side Flow Buckets designed for different material types.
Heavy Material Side Flow Bucket
Built for rock, gravel, limestone, asphalt, and dense materials
Lower profile bucket with stronger cutting edge
3/4" heavy-duty cutting edge
Light Material Side Flow Bucket
Designed for sawdust, mulch, silage, and lightweight materials
Taller bucket with larger capacity
Includes beater bar system to prevent clogging
Working with lighter materials like mulch or sawdust? Check out the Dual Side Flow Light Material Bucket for high-capacity spreading of lightweight materials.
Ideal Applications
Road and driveway material spreading
Gravel and limestone distribution
Asphalt patch work
Construction site material placement
Farm and property maintenance
Frequently Asked Questions
What materials can this bucket handle?
This bucket is designed for dense materials such as rock, gravel, limestone, asphalt, and similar aggregates.
Can I control the discharge speed?
Yes. The bucket includes adjustable control valves that allow you to adjust the belt speed and direction.
What hydraulic flow is required?
The bucket requires 15–20 GPM hydraulic flow for proper operation.
Will this fit my skid steer?
Yes. The bucket features a universal quick attach mounting plate, making it compatible with most skid steers.
Where is this product made?
The Dual Side Flow Bucket is proudly manufactured in the USA.
Lead Time
Please allow 4–6 weeks lead time for all Dual Side Flow Buckets due to manufacturing demand. Please call +1 307-417-6686 for more information.
