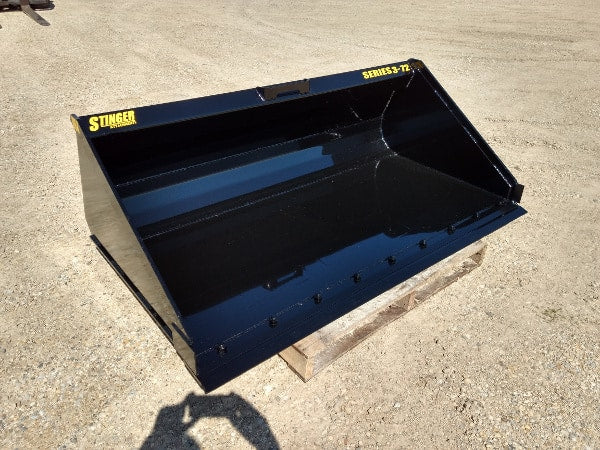

Skid Steer Material Bucket – Series 3 (MB3)

The Series 3 Skid Steer Material bucket attachment is a step up in capacity from our series 2. Series 3 is engineered to provide more capacity for larger skid steer wheeled and track machines. Available in 5 different sizes from 60 to 84” inches in width. This material bucket attachment comes standard with a universal skid steer mount plate. We can also custom fit other mounting options or leave plain so you have the option to custom fit your own. Our top channel brace and bottom radius support add the strength needed to handle the biggest machines. The bottom-radius support also adds better clean out. Our standard back degree angle is 68 degrees. We have found this to be a very good fit for most machines in the roll-back and dump positions.This heavy-duty skid steer bucket is available with two cutting edge options. Option 1 (Weld on Edge), we weld on a large 3/4x8 Edge to the bucket shell. Option 2 (Bolt on Edge), we weld a 1/2x6" edge with holes to bucket shell, then bolt on a 3/4x6 edge to the bottom.

Features

• 3/16ths grade 50 shell.
• 40” deep bucket for increased capacity and greater visibility of the cutting edge.
• Weld on, Or Bolt on Cutting Edge Options
• ¼” sides with½” thick side braces for added strength.
• 4 – 4” wide by ½” thick wear bars for improved strength and prolonged bucket life.
• Reinforcement tube across top of bucket for greater strength, durability and ultimate visibility.
• 3/16ths rolled insert for added strength and better clean out.
• Included step for easier access.

Specs
